Demand for differential pressure gauges in Quang Minh Industrial Park

Quang Minh Industrial Park accommodates manufacturers operating in electronics, mechanical engineering, industrial equipment, food processing, pharmaceuticals, cosmetics and supporting industries. These factories increasingly require stable production environments, controlled airflow and effective monitoring of pressure, dust, temperature and humidity.

In cleanrooms, dust-controlled areas, precision-assembly rooms and central air-handling systems, differential pressure is an important operating parameter.

A differential pressure gauge measures the difference in pressure between two locations. It can be installed between two rooms, between a cleanroom and a corridor, upstream and downstream of a HEPA filter or on clean-air equipment.

For factory operators, the reading helps identify changes associated with airflow, doors, fans, dampers and filter resistance. For cleanroom contractors, selecting the correct instrument during the design stage reduces the risk of replacement during commissioning.

A well-known gauge may still be unsuitable if the measuring range or documentation does not match the application. Factories should therefore choose a supplier capable of providing application-based technical advice rather than only offering a product code and price.

What is a differential pressure gauge?

A differential pressure gauge measures the difference between two pressure points. It normally has one high-pressure port and one low-pressure port connected to the measuring locations through pressure tubing.

The displayed value is the difference between the two pressures. It is not the absolute pressure at one point and does not directly indicate air cleanliness.

In cleanrooms, the instrument is commonly used to monitor pressure relationships between areas. In AHUs, HEPA filter housings and cleanroom equipment, it is used to measure pressure loss across filters.

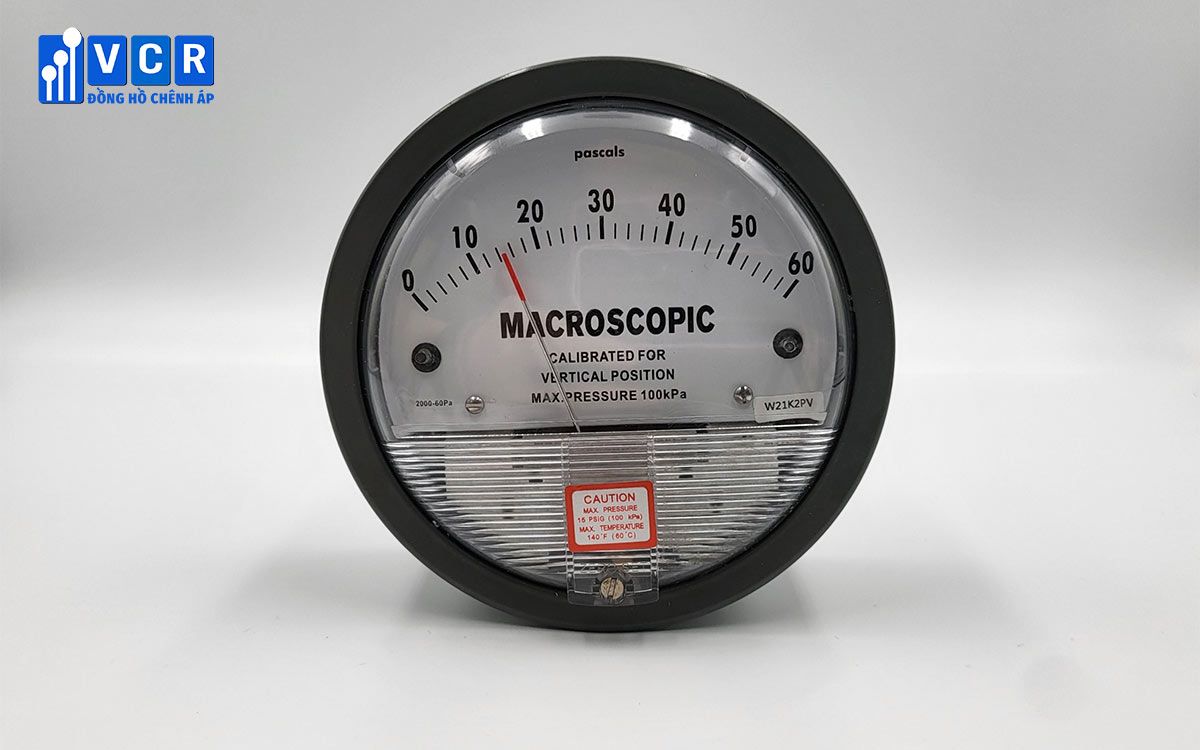

Differential pressure gauges are available as mechanical dial gauges and digital instruments. Mechanical gauges provide local visual indication. Digital instruments may display numerical values, activate alarms or transmit signals to a PLC, building-management system or environmental-monitoring system.

Role of differential pressure in environmental control

Air tends to move from an area of higher pressure to an area of lower pressure. This principle is used to establish the intended airflow direction between rooms.

In product-protection applications, the cleaner room is generally maintained at a higher pressure than the adjacent space. When a door opens or leakage paths are present, air tends to flow outward, reducing the entry of uncontrolled air.

In containment applications involving dust, chemicals or potentially hazardous substances, the room may be maintained at a lower pressure than surrounding areas.

The correct differential pressure should not be selected using one universal value. It depends on the process, cleanliness requirements, room tightness, number of doors, door-opening frequency, supply airflow, return airflow and contamination-control objectives.

The gauge allows operators to verify whether actual pressure remains within the intended range. It does not regulate room pressure unless integrated with a controller, variable-speed drive or automation system.

Cleanroom pressure-monitoring applications

In factories located in Quang Minh Industrial Park, differential pressure gauges may be installed between a production room and a corridor, between a cleanroom and an airlock or between areas with different cleanliness classifications.

The gauge is often located near the door so that operators can check the reading before entering. The pressure tap should not be positioned too close to a supply grille or a high-velocity airflow zone.

The measuring point should represent room static pressure. If it is located near a fan, diffuser or turbulent airflow, dynamic pressure may affect the reading.

A low differential pressure may be caused by an open door, poor door sealing, reduced supply airflow, fan-performance deterioration, damper changes or an imbalance in return airflow.

An unexpectedly high differential may result from restricted return airflow, closed dampers, increased supply airflow or changes in door condition.

The reading should therefore be evaluated together with HVAC status, door position, fan operation and airflow measurements.

HEPA filter monitoring

Differential pressure gauges are commonly installed upstream and downstream of HEPA filters to monitor pressure loss.

As air passes through the filter media, the filter creates resistance. Dust accumulation may increase this resistance and change the pressure reading over time.

The initial pressure drop should be recorded after the new filter is installed, the system is stable and normal operating airflow has been established. This becomes an important reference for monitoring the filter throughout its service life.

A high differential pressure does not necessarily mean that the filter is damaged. It may be caused by dust loading, increased airflow, blocked pressure tubing or unsuitable pressure-tapping locations.

A low reading does not prove that the filter remains effective. A torn filter, poor sealing or bypass airflow may reduce resistance while compromising particle-control performance.

HEPA filter assessment should therefore combine differential pressure with leakage testing, integrity testing, airflow velocity, airflow volume and other relevant qualification tests.

AHU and HVAC applications

Air-handling units normally include several filtration stages, such as prefilters, medium-efficiency filters, fine filters and sometimes HEPA filters. Each stage has a different initial pressure drop and final replacement limit.

Differential pressure gauges help maintenance teams monitor dust loading on each filtration stage. As resistance increases, airflow may decrease unless the fan system automatically compensates.

The same measuring range should not be used for every filter. Prefilters, bag filters, fine filters and HEPA filters have different pressure-drop characteristics.

If the range is too high, pointer movement is limited and meaningful changes are difficult to observe. If the range is too low, the pointer may exceed full scale or the gauge may operate outside its suitable range.

Pressure tubing should be securely installed, free from leakage and kinks, and arranged to prevent condensation. The pressure taps must be located correctly upstream and downstream of the filter section being monitored.

After installing a new filter, the initial pressure drop should be recorded at normal airflow. This supports condition-based maintenance instead of relying only on fixed replacement intervals.

Applications on cleanroom equipment

Differential pressure gauges are also installed on dynamic pass boxes, air showers, laminar airflow units, dispensing booths, sampling booths, biosafety cabinets and HEPA filter housings.

On a dynamic pass box, the gauge may monitor filter resistance or pressure inside the chamber.

On dispensing booths and laminar airflow units, it is commonly used to monitor pressure loss across HEPA filters. Some systems use electronic sensors together with variable-speed drives to maintain stable air velocity.

On HEPA filter boxes and terminal air-supply modules, the gauge helps operators observe increasing filter resistance during operation.

Each equipment type has a different airflow rate, filter area, chamber configuration and operating resistance. The supplier should understand the equipment principle before recommending a range.

Common measuring ranges

Low ranges are generally preferred for cleanroom pressure monitoring because they make small variations easier to observe. Common reference ranges include 0–30 Pa, 0–60 Pa, 0–100 Pa and 0–125 Pa.

For rooms that may operate under both negative and positive pressure, bidirectional ranges such as -30 to +30 Pa or -60 to +60 Pa may be appropriate.

For HEPA filters, dispensing booths, laminar airflow units and filtration modules, ranges such as 0–250 Pa, 0–500 Pa, 0–750 Pa or 0–1,000 Pa may be considered.

For AHUs, the range should be selected using the initial pressure drop, recommended final pressure drop and actual operating airflow of each filtration stage.

The correct range is not necessarily the largest one. It should cover the maximum expected pressure while still allowing meaningful changes to be observed clearly.

Mechanical or digital differential pressure gauge

A mechanical differential pressure gauge is suitable where local indication is sufficient. It is relatively simple, easy to read and does not require an electrical supply for basic operation.

Mechanical gauges are commonly installed on cleanroom walls, AHUs, filter housings and clean-air equipment.

A digital gauge or transmitter is more suitable where alarms, data recording or signal transmission are required. Depending on the model, outputs may include 4–20 mA, 0–10 V, relay contacts or communication protocols.

If operators only need periodic local readings, a mechanical gauge may provide a practical and economical solution.

If the point is critical and requires continuous monitoring or deviation investigation, an electronic transmitter provides greater functionality. The total cost should also include power supply, signal wiring, control-panel integration, programming, calibration and maintenance.

How to select a supplier in Quang Minh Industrial Park

Application-based technical advice

The supplier should determine whether the gauge will be used for room pressure, HEPA filter monitoring, AHU filtration or cleanroom equipment.

Each application has different measuring ranges, pressure limits and installation requirements. Selecting a gauge only according to dial diameter or price can result in an unsuitable product.

Understanding of cleanrooms and HVAC systems

Differential-pressure readings are affected by supply airflow, return airflow, room tightness, door condition, fans, dampers and filter resistance.

The supplier should understand these relationships to recommend the correct range, pressure-tapping position and installation method.

Vietnam Cleanroom Equipment, also known as VCR Cleanroom, supplies differential pressure gauges and cleanroom equipment to cleanroom contractors, MEP companies, system integrators and industrial factories. Product selection is based on the actual application, documentation requirements and operating conditions.

Complete technical documentation

Depending on the project, documentation may include a product catalogue, technical data sheet, installation instructions, certificate of origin, quality certificate and calibration certificate.

Contractors should confirm documentation requirements during the material-approval stage. This reduces the risk of supplying a technically suitable instrument that cannot be accepted because its documentation is incomplete.

Installation and troubleshooting support

Many inaccurate readings are caused by reversed pressure ports, leaking tubing, blocked tubing, condensation or unsuitable pressure-tapping locations rather than gauge failure.

An experienced supplier should support high- and low-pressure port identification, zero adjustment and troubleshooting when readings are unstable.

Coordinated supply capability

For cleanroom projects, sourcing differential pressure gauges together with HEPA filter boxes, pass boxes, laminar airflow equipment, door interlocks and related products can reduce technical coordination risks.

It also helps contractors coordinate drawings, technical submissions, delivery schedules and after-sales support.

Calibration and acceptance documentation

A calibration certificate should clearly identify the instrument, model, serial number, measuring range, calibration points, errors and test conditions.

A quality certificate or factory inspection report does not fully replace an individual calibration certificate.

The calibration interval should be determined according to the criticality of the measuring point, quality-management requirements, manufacturer recommendations and historical stability.

Not every gauge necessarily requires the same calibration interval. A critical production-room measuring point may require stricter control than a gauge used only as a reference on a support system.

Common installation mistakes

The most common error is reversing the high-pressure and low-pressure ports. The pointer may fail to rise or may move in the wrong direction.

Kinked, leaking or blocked tubing can also produce incorrect readings. In humid environments, condensation may accumulate in the tubing and cause unstable indication.

Some mechanical gauges must be installed in the correct orientation. Incorrect mounting or an unstable surface may shift the zero point.

Pressure taps should not be positioned too close to supply grilles, fans or high-velocity airflow. Dynamic pressure in these locations may prevent the reading from representing room static pressure.

Pre-commissioning checks

Before commissioning, the project team should verify the model, measuring range, engineering unit, installation location and pressure-port connections.

When both ports are exposed to equal pressure, the gauge should return to zero within its allowable tolerance.

The system should then be operated to confirm pointer direction and the actual differential-pressure value.

For digital instruments, the power supply, output signal, alarm thresholds, display and connection to the PLC or building-management system should also be tested.

A calibrated instrument can still provide an incorrect field reading if the tubing leaks, becomes blocked or is connected incorrectly. Acceptance testing should therefore evaluate the complete measuring loop.

Frequently asked questions

Where can factories in Quang Minh Industrial Park buy differential pressure gauges?

Factories should choose a supplier with practical experience in cleanrooms and HVAC systems that can recommend the measuring range, connection accessories, installation method and calibration documentation.

Can the same gauge be used for cleanroom pressure and HEPA filters?

Only when its range and pressure limit are suitable for both applications. In practice, room-pressure gauges generally have a lower range than gauges used across HEPA filters.

Is a gauge defective if it does not return to zero?

Not necessarily. Both ports should first be exposed to equal pressure, and the tubing, condensation, mounting position and zero-setting mechanism should be checked.

How often should a differential pressure gauge be calibrated?

The interval depends on the criticality of the measuring point, quality-management requirements and historical instrument stability. The factory should establish the interval through risk assessment.

Can a differential pressure gauge confirm cleanroom classification?

No. It only measures the pressure difference between two points. Cleanroom classification must be determined through airborne particle counting and other applicable environmental tests.

Differential pressure gauge consultation for Quang Minh Industrial Park

When requesting technical advice or a quotation, factories and contractors should provide the installation location, expected pressure range, display type, output-signal requirements, quantity and documentation requirements.

Vietnam Cleanroom Equipment supplies differential pressure gauges for cleanrooms, AHUs, HVAC systems, HEPA filters, pass boxes, dispensing booths and other controlled-air equipment in Quang Minh Industrial Park.

Defining the application correctly from the beginning helps select the appropriate model, reduces changes during installation and improves project acceptance.
